MultiDrain Steel Trench Drain

MultiDrain® is a versatile pre-engineered steel trench forming/liner system combining the installation and adjustability advantages of our EconoDrain® trench forming system. The system includes metal former liners, in galvanized or stainless steel, for trench widths from 6″ up to 24″. Our EZ Frame Z-rail grate frame provides quick and easy grade adjustments and frame anchorage into the surrounding concrete. Trench slopes from 0% to 1% are possible for optimal fluid velocity. MultiDrain® installs in a fraction of the time required for conventional wood form-and-pour systems. MultiDrain® is a custom, made-to-order product made to fulfill your specific site drainage project requirements at the greatest value.

Additional features include:

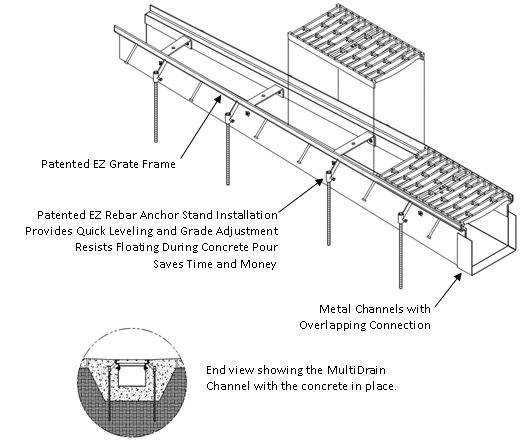

  • EZ-Frame incorporates an adjustable anchor stand for leveling and grade adjustments.
  • EZ-Frame and spacer bars attach to metal channels using nuts and bolts.
  • Anchor stands and weld studs welded to the EZ-Frame assure secure anchorage into bedding concrete.
  • Engineered to accept a variety of grating types and service loads.
  • Interlocking metal channel sections slip together easily. Joints may be sealed using a flexible caulk or by welding.
